Battery Crush and Needle Penetration Tester with 15KN Extrusion Force Explosion-Proof Test Chamber and Remote Computer Control

Name: Battery Crush and Needle Penetration Tester with 15KN Extrusion Force ExplosionProof Test Chamber and Remote Computer Control
Brand: Kingpo
Price: 1 USD

Brand Name : Kingpo

Place of Origin : China

MOQ : 1

Price : To be quoted

Payment Terms : T/T

Contact Now

Battery Crush and Needle Penetration Tester - KP-8101C

Professional testing equipment for evaluating battery safety under compression and puncture conditions, compliant with international safety standards.

Key Technical Specifications

Model: KP-8101C

Structure: Vertical servo electric cylinder transmission

Control Method: Remote computer control

Test Space: W300×D300×H300 mm

Extrusion Force Range: 1-15 kN (adjustable)

Force Accuracy: ±0.01 kN to ±0.7 kN depending on force level

Maximum Stroke: 300 mm

Displacement Accuracy: ±0.1 mm

Test Speed Range: 0.1-40 mm/s

Voltage Channels: 2 channels, 0-10V range

Temperature Channels: 2 channels, 0-800°C range

Power Supply: AC 220V, 50Hz

Total Power: 1.5 kW

Battery Crush and Needle Penetration Tester with 15KN Extrusion Force Explosion-Proof Test Chamber and Remote Computer Control

Safety Features

Explosion-proof stainless steel test chamber (SUS304)
Pressure relief vent with protective screen
Smoke exhaust system with 450m³/h capacity
Explosion-proof chains on doors
Access control safety interlock
Three-color alarm light system
Emergency stop protection
Explosion-proof glass observation window

Testing Capabilities

Compatible with cylindrical, square, button, and soft pack batteries according to GB31241-2022 standards.

Extrusion Heads:

Flat extrusion head: Ø150 mm
Cylindrical extrusion head: Ø25 mm × 200 mm

Steel Needles:

Material: SKD11, 45° tip angle
Ø3 mm × 100 mm (5 pieces)
Ø5 mm × 100 mm (5 pieces)

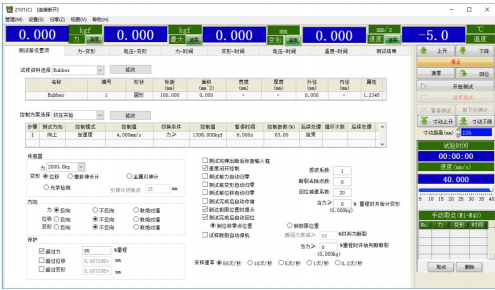

Data Acquisition & Control

Advanced computer-controlled system with real-time monitoring and data export capabilities.

Software Features:

Chinese/English interface selection
Real-time parameter recording (force, displacement, temperature, voltage)
Curve display and analysis
Data export to Excel format
Multi-channel data acquisition

Compliance Standards

GB 31241-2022 - Safety Requirements for Lithium-ion Batteries
IEC 62133-1-2017 - Secondary Battery Safety
UL 1642-2022 - Lithium Battery Safety Standard
UN 38.3 - Transport of Dangerous Goods

Physical Specifications

Host Dimensions	W850 × D800 × H1970 mm
Control Cabinet	W830 × D750 × H1200 mm
Equipment Weight	Approx. 350 kg

Standard Configuration

Testing Host (1 unit)
Computer Control Cabinet (1 unit)
Operating Instructions
Factory Inspection Report
CNAS qualified measurement certificate

Quality Assurance

Equipment includes performance certificate from provincial-level testing agency and third-party verification with CNAS mark.
